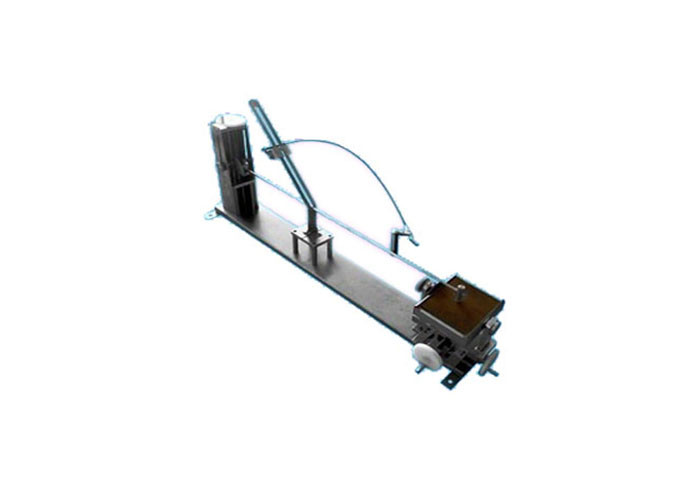

Pendulum Hammer Test Apparatus

Product details:

This testing device conforms to many standard requirements like IEC60068-2-75 IEC0884-1fig22-26. It is used for the mechanical strength test of Household and similar use of plug socket, some electrical accessories like switch and shroud etc. The test apparatus consists basically of a pendulum rotating at its upper end in such a way as to be kept in a vertical plane. The axis of the pivot is at 1000㎜ above the measuring point. This device is for the energy impact test (the energy is no more than 1J).

Technical parameters:

Pendulum: Length: 1000mm; external diameter: 9mm; thickness: 0.5mm; material: steel; weight: 100±1g

Mounting bracket:weight: 10±1 kg; it is well-set and the Horizontal direction and the vertical direction can be adjusted. The whole bracket can be rotated 90°through the rotation axis.

Striking element: 150g and 200g.

The feature of striking elements

The height of falling

IK code and the corresponding impact energy
