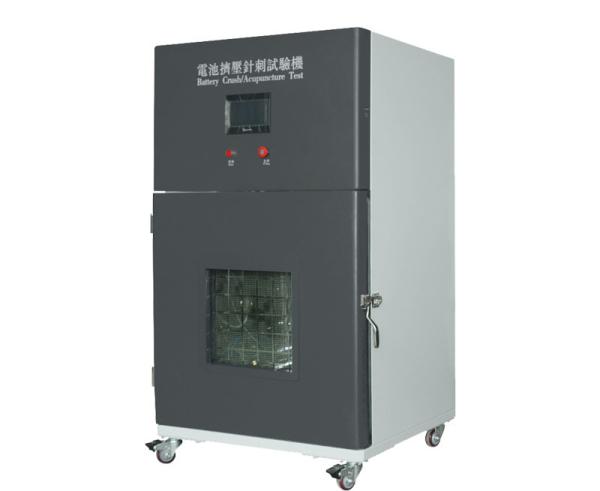

Vertical Type With Vertical Pressure Structure Battery Crush Nail
Penetration Tester Equipment
Standard
IEC62133 clause 7.3.6,8.3.5 IEC60086-4 clause 6.5.3 IEC 60086-1,
GB/T 18332.2-2001,
UL1612,UN38.3,GB/T 31241-2014 and etc
Applications
This Battery Test Machine is designed to simulate the power lithium
battery terminal actual using environments, such as battery in
crush, penetration and feedback the various results in different
crushing/penetration conditions.
Testing should be under environment temperature of 20℃ ± 5℃, put
the battery which connect with thermocouple (the touch point of
thermal couple fixed on battery large surface) in the draught
cupboard, with 3mm non corrosion stainless nail penetrate the
center point of the battery with speed of 20mm/s-80mm/s.
Parameters
| Structure | Vertical type with vertical pressure structure |
| Input Voltage | 380V 50 Hz |
| Pressure Range | 1KN ~ 20KN(Controllable) |
| Force Tolerance | ±1% |
| Crush Range | 0~400MM |
| Unit Switch | Kg/N/Lb |
| Nail Penetration Speed Range | 1 ~ 80mm/s(Controllable) |
| Speed Accuracy | ±0.1MM/S |
| Nail Penetrate Power | Oil Pressure |
| Testing Space | ≥ W300*D300*H200mm |
| Overall Dimension | W940XD780XH1620 mm |
| Observation Window | 390 X 360mm(20mm thick tempered explosion-proof glass) |
| Lighting | With light on chamber inner top side |
| Base | Installed with 4 universal wheels and 4 fixing casters, available
for free moving and fixing . |
| Explosion -proof Devices | With air release function, exhaust the waste air which produced
when testing; With explosion proof and pressure release
function,Magnetic adsorption type pressure relief door on back side
of protection cabinet(300*300mm),when with strong air shock, the
relief door open automatically ,reduce explosion shock force . |
| Chamber Bottom | With extract type collection device for electrolyte and
Experimental debris. |
| Tungsten steel needle | Φ3X100MM 10 pieces Φ5X100MM 10pieces |
| Machine Weight | About 400KG |
| Display Method | PLC Touch Screen |
Features
1.Air Exhaust System: Long axis motor drive the aluminum blades,
able for exhaust the waste air out anytime.
2.Pressure Balance System: Double hole air supply, ensure pressure
balance inside chamber.
3.Maintenance System: All parts that need dismounting all with trap
structure, convenient for maintenance.
4.Safety System:
(1).Stainless steel hinge, lock the chamber door, ensure the door
not shocked open when with strong air flow.
(2).With micro switch on chamber door, only when chamber door
closed the system can work normally.
(3).Chamber back side with door type design, one side hinge,
another side with strong magnetic lock, when with strong air flow
shock, the back cover open automatically ,thus reduce the explosion
shock force.
(4).Inner chamber with high temperature resistance structure,
without inflammable electrical cables or other materials.
5.Humanization design
(1)About 800mm distance between crush bench and the floor, easy for
operation .
(2)Double layer temper glass observation window, ensure safety and
simultaneously testers able to observe the testing condition .
(3)Inner built energy saving light for the whole testing space,
convenient for observation.
6.Camera System:Installed with high resolution camera system, able
for clear observation of the testing procedure.
Accessories
| 3mm Tungsten steel needle | 10pieces |
| 5mm Tungsten steel needle | 10pieces |
| Chuck wrench | 1piece |
| Steel needle clamp | 1 E.A |
| Pressure Sensor System | 1E.A. |
| Flat crush plate,diameter 150mm | 1piece |
