Household IEC60884-1 Clause 20 21 Switch Plug Socket Breaking Endurance Test System

Products Introduction:

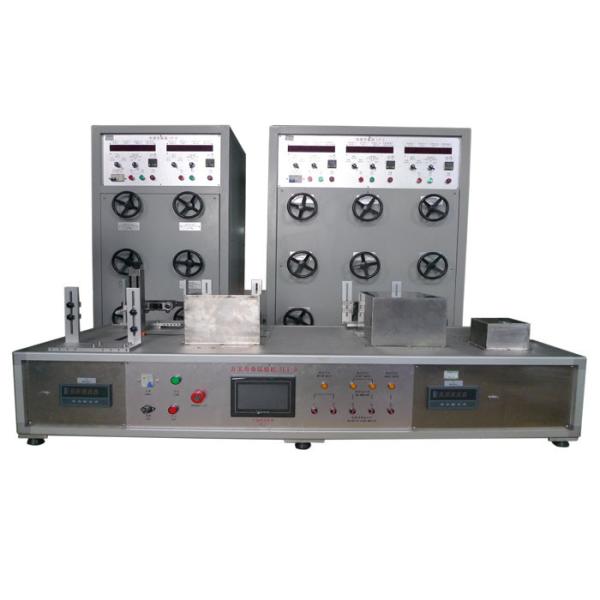

The switch plug socket test system consists of one set of switch plug socket test equipment and 2 sets of load boxes. The test system can process breaking testing under load power and endurance testing under normal use for the switches plugs and sockets which are listed in IEC60884-1.

The switch plug socket test equipment is designed and manufactured according to IEC60884-1, IEC61058-1, IEC60669-1standards and etc. It is applicable for household and similar fixed electrical installations’ breaking capacity and normal operation life test, also suitable for testing household and similar usage plug/ socket’s breaking capacity and normal operation life . The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contact points has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences. It is special test equipment for switches and plug-sockets electrical endurance test.

The load boxes are designed and manufactured according to IEC60884,IEC61058,IEC606691 standards and etc. It is applicable for household and similar fixed electrical installations switches and plug sockets breaking capacity and normal operation test, the rated voltage of the switch is not greater than 280V and the rated current less than 16A. The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contacts has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences.

The test system can do testing for button switches, toggle switches, rocker switches, push switches, rotary switches, plugs and sockets. Coupled with the load (resistive, inductive, capacitive) can process loading test,it has a corresponding control system.

Technical Parameters:

Guangzhou HongCe Equipment Co., Ltd (hereinafter referred to as HongCe) is located in Guangzhou, China, since 2003, engaged in developing and providing test equipment and detection system for electronic & electrical products, house appliances and other products. HongCe is professionally dedicated in providing laboratory testing equipment and production line testing system, we are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Our core technologies encompass vacuum, leak testing & automatic control, laboratory test equipment & solution. Our technical leader is an expert in leak detection, his more than 2 decades of experience are a great asset to our firm. Our technical team is comprised of wellexperienced engineers and technicians.

HongCe laboratory testing equipment are designed and manufactured as per the requirements of GB, IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; waterproof and dustproof environmental testing equipment; household appliances testing equipment; wire and cable testing equipment; luminaires test equipment; electric tools test equipment; information technology and audio & video test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

HongCe production line testing equipment are mainly customized according to client's workpieces, such as automatic leak testing system, gas recovery system, other tailor-made system based on vacuum & leak testing technology.
