Steel Pressure IEC 60884-1 Figure 8 Compression Test Equipment By Manual Operation

Product details:

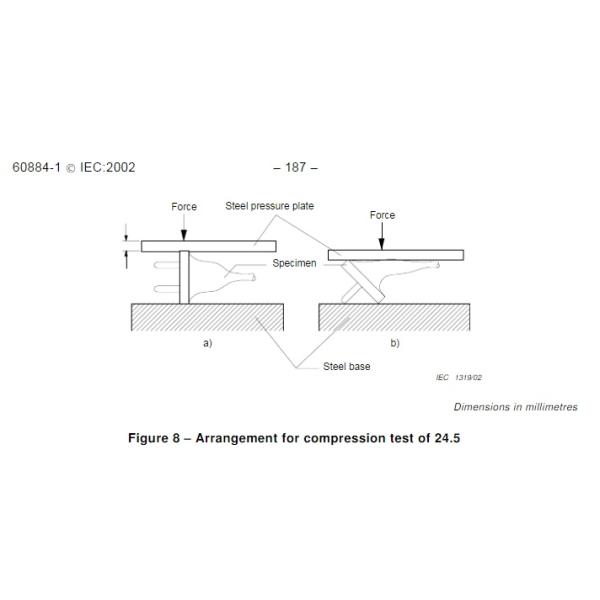

The arrangement for compression test apparatus of 24.5 is desgined and manufactured according to IEC 60884-1 figure 8, it is manufactured to test the compression resistance of test specimens. It consists of steel pressure plate , steel base and 300 N weight, its operation way is by manual.

Test principle:

The specimens are subjected to a compression test as shown in figure 8, the temperature of the pressure plate, of the base and of the specimens being (23±2) ℃ and the force applied being 300 N.

The specimens are first placed in position a), as shown in figure 8, and the force is applied for 1 min. They are then placed in position b), as shown in figure 8, and again subjected to the force for 1 min.

The specimens are removed from the test apparatus and after 15 min they shall show no damage within the meaning of this standard.

Technical parameters:
