IEC Test Equipment IEC 60811 Cold Bend Test Apparatus For Cables
Sheaths and Insulation
Product presentation of IEC Test Equipment:
Low temperature bending tester is a device used to test the dynamic
bending performance of wire and cable at low temperature. The
equipment is mainly composed of low temperature thermostat, winding
device and material testing system. It is suitable for circular
wire and cable with outer diameter less than or equal to 12.5mm or
circular insulated wire core, as well as flat wire and cable with
short sleeve size less than or equal to 20mm or fan insulated wire
core that cannot be made into dumbbell pieces.
Standard of Cold Bend Test Apparatus:
IEC 60811-1-4 Common test methods for insulating and sheathing
materials of electric and optical cables - Part 1-4: Methods for
general application - Test at low temperature clause 8.1 and 8.2;
IEC 60811-504 Electric and optical fibre cables – Test methods for
non-metallic materials – Part 504: Mechanical tests – Bending tests
at low temperature for insulation and sheaths
Application of IEC Testing Equipment:
This test is intended for performing bending tests at low
temperature on extruded insulations and sheaths.
Test sample of Cold Bend Test Apparatus:
For tests on the insulation, the test is intended for insulated
conductors of circular cross-section having an external diameter up
to and including 12,5 mm and for sector-shaped cores where it is
not possible to prepare dumb-bells.
For tests on sheaths, the test is intended for cables with an
overall diameter up to and including 12,5 mm; and for flat cables,
with a major axis dimension up to and including 12,5 mm.
Matters need attention of IEC Test Equipment:
1.Ensure that the testing machine is kept at a low temperature
during testing to avoid thermal effects on the material.
2.During the testing process, it is necessary to use the
appropriate fixture and sample to ensure the accuracy and
reliability of the test results.
3.During the test, you need to pay attention to the running status
of the device and record the test data for subsequent analysis and
evaluation.
Parameters of IEC Test Equipment:
Station:2
Diameter of samples:Φ2.5mm ～12.5mm
The number of turns:2 to 10 turns, and the number of turns shall be
as specified in the following table:
| Overall diameter (d) of the test piece (mm) | Number of turns |
| D≤2.5 | 10 |
| 2.5﹤d≤4.5 | 6 |
| 4.5﹤d≤6.5 | 4 |
| 6.5﹤d≤8.5 | 3 |
| 8.5﹤d | 2 |
Test condition: The diameter of the mandrel shall be between 4 and
5 times the diameter of the test piece. Standard equip with the
mandrel :Ф4,Ф5,Ф6,Ф7,Ф8,Ф10,Ф12,Ф14,Ф16,Ф18,Ф20,Ф24,Ф37.5mm
Rotation speed: 5S/ turn, manual control
Diameter of pipe: Ф3.5,Ф6,Ф10,Ф12,Ф16mm, each of two pieces

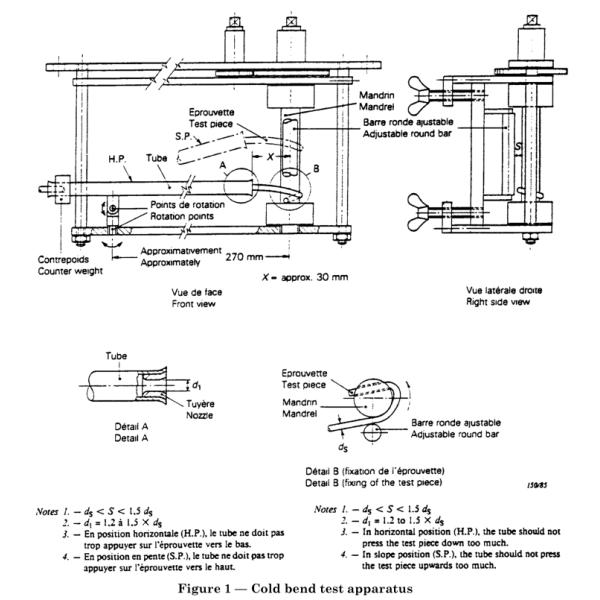

Picture for reference of IEC Test Equipment:
