Integrated Test Device For Circular Saw Switch And Lower Guard, 0-250V/5KW Built-in Load

Standard: EN 60745-2-5: 2010 Annex M21.18, Annex M21.18.301, Annex M21.203, Annex M21.301, figure M.301, IEC60745-2-5:2003 Annex BB.20.102, EN 60745-2-5:2010 clause 17.101 and clause 19.102.3.

Application: It is used to test the circular saw switch performance and circular saw lower guard’s durability and recovery time.

Test sample: Circular saws IEC Test Equipment

Feature: This equipment is composed of two parts, the mechanical system and electrical control system.

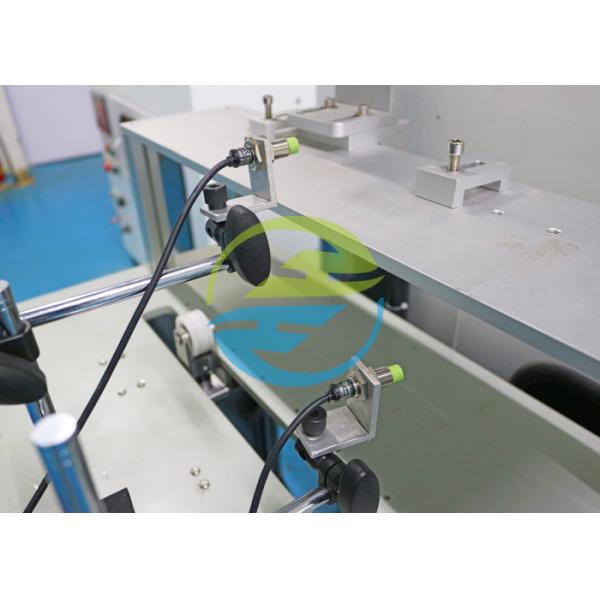

Mechanical system is the table for circular saw. There are a switch and sample socket on the table, operator can push the switch to turn on or off the load power supply to the test sample; different sizes of circular saws can be placed and fixed on the table; on the table, device for locking the switch of the hand-held circular saw in the “on” position; the blade can extend to the bottom of the table through the middle groove; on the table where under the blade, there are a the lower guard putter and two position sensors , which can be drive the lower guard of the circular saw to be opened or closed. IEC Test Equipment

The electrical control system consists of the load power supply, MITSUBISHI PLC, 7 Inch

Touch screen and etc. Can achieve manual operation and automatic operation.

Parameters:

Picture for reference:
