Electrical Control Leakage Tracking Tester for Flammability Testing
Equipment
Product Introduction with Flammability Testing Equipment:
Standard: IEC 60112, UL746A, IEC60335-1, IEC60598-1 and ASTM
D3638-92.and etc.
Application: It is used for determination of the relative
resistance to tracking performance that solid electrical insulating
material under the action of an electric field, when the surface
exposed to water containing impurities.
Test sample: Lighting equipment, low-voltage electrical appliances,
household electrical appliances, machine tools, electrical
appliances, electric motors, electric tools, electronic
instruments, electrical instruments, information technology
equipment, insulation materials, engineering plastics, electrical
connectors, accessories industry.
Product Features with Flammability Testing Equipment:
The working principle of the leakage tracking test(tracking index
testing) is that the conducting liquid (0.1%NH 4 CL) of required
volume in the required height (35mm ) and required time (30s) drops
with the voltage between the platinum electrodes (2mm× 5mm )on the
surface of solid insulating material. Thus the users evaluate the
tracking resistance performance of solid insulating material
surface under the combined influence of electric field and humid or
contaminate medium. In a word, this device is used to measure the
compare tracking index (CTI) and electrical resistance index (PTI).
Product Parameters with Flammability Testing Equipment:
| Working voltage | 230V/50Hz, 1KVA |
| Control operation mode | Electrical control, button operation |
| Testing voltage | 0～600V adjustable, precision 1.5％ |
| Timing device | 9999X0.1S |
| Electrode | Material:Platinum electrode and brass connecting rod |
| Size: (5±0.1)×(2±0.1)×(≥12)mm, 30°slant, Tip rounding:R0.1mm |
| Relative position of electrod | Included angle:60°±5°, distance is 4±0.1mm |
| Electrode pressure | 1.00N±0.05N (digital display is optional) |
| Dripping liquid | The interval time of dropping liquid:30±5S, digital display, can be
preset |
| Height:35±5mm |
| The number of drips:0-9999 times, can be preset, the volume size of
the dripping liquid is controlled by the imported micro pump within
50 ~ 45 drips /cm³ |

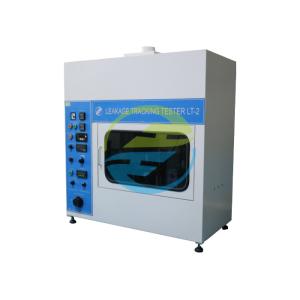

Produtct Image with Flammability Testing Equipment:
